Autoencoder Tutorial
Topic: AutoEncoder
An Autoencoder neural network is a type of unsupervised learning algorithm that applies backpropagation and setting the target values to be equal to the inputs that means; y(i) = x(i)
Ref:http://ufldl.stanford.edu/tutorial/unsupervised/Autoencoders/ https://www.deeplearningbook.org/contents/autoencoders.html
The model is actually try to learn a function hW,b(X) $\approx$ X which means that the fuction is trying to learn an approximatly identity function. The model is a neural network with 3 layers. The input layer size is the size of X and output layer also have same size while the hidden layer are of varing size. The number of neurons in the hidden layer may be less or more than the input layer. Lets assume the number of neuron in the hidden layer is 50 and the output layer is 100. So the function is force to learn compressed representation of the input data. If the input features were each independent of one another, this compression and subsequent reconstructioin would be very difficult task. However if there is some sort of structure exist for example correlation between the features then this stucture can be learned and leverage when forcing the input the network’s bottleneck.
There are many application of autoencoder such as:
- Dimension reduction
- Extract hidden pattern (information) in the data
- Recomendation system for the missing values
- Data denoising.
We are going to do a hands on exercise for better understanding.
There are different types of autoencoder: - Undercomplete autoencoder - Sparse autoencoder - Denoising autoencoder - Contractive autoencoder
### Undercomplete autoencoder ### Complete autoencoder
# Building an autoencoder
# loading important libraries
import tensorflow as tf
from keras.layers import Input, Dense
from keras.models import Model
from keras import regularizers
from keras.callbacks import TensorBoard
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
Using TensorFlow backend.
# encoding dimenison
encoding_dim = 32
input_img = Input(shape=(784,))
# encoded is the encoding representation of the input
encoded = Dense(encoding_dim,activation="relu")(input_img)
# decoded is the decoding representation of the encoded image
decoded = Dense(784, activation="sigmoid")(encoded)
# This model map an input to its reconstruction
autoencoder = Model(input_img,decoded)
# only encoded repsentation
encoded = Model(input_img,encoded)
# Next is the decoded model
encoded_input = Input(shape=(encoding_dim,))
decoder_layer = autoencoder.layers[-1]
decoder = Model(encoded_input, decoder_layer(encoded_input))
# Compile the model
autoencoder.compile(loss="binary_crossentropy",optimizer="adadelta")
Let’s prepare our datasets
from keras.datasets import mnist
(x_train, _), (x_test,_) = mnist.load_data()
print(x_train.shape)
print(x_test.shape)
(60000, 28, 28)
(10000, 28, 28)
# Normalized the values between 0 to 1
x_train = x_train.astype('float32') / 255.
x_test = x_test.astype('float32') / 255.
x_train.shape
(60000, 28, 28)
# flatten the shape
x_train = x_train.reshape(x_train.shape[0],np.prod(x_train.shape[1:]))
x_test = x_test.reshape(x_test.shape[0],np.prod(x_test.shape[1:]))
np.prod(x_train.shape[1:])
784
print(x_train.shape)
print(x_test.shape)
(60000, 784)
(10000, 784)
# training
autoencoder.fit(x_train, x_train,epochs=100, batch_size=256, shuffle=True, validation_data=(x_test, x_test),callbacks=[TensorBoard(log_dir='autoencoderLog')])
Train on 60000 samples, validate on 10000 samples
Epoch 1/100
60000/60000 [==============================] - 2s 37us/step - loss: 0.3702 - val_loss: 0.2719
Epoch 2/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.2648 - val_loss: 0.2543
Epoch 3/100
60000/60000 [==============================] - 2s 32us/step - loss: 0.2438 - val_loss: 0.2312
Epoch 4/100
60000/60000 [==============================] - 2s 32us/step - loss: 0.2230 - val_loss: 0.2130
Epoch 5/100
60000/60000 [==============================] - 2s 32us/step - loss: 0.2081 - val_loss: 0.2006
Epoch 6/100
60000/60000 [==============================] - 2s 32us/step - loss: 0.1973 - val_loss: 0.1912
Epoch 7/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1886 - val_loss: 0.1835
Epoch 8/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1816 - val_loss: 0.1771
Epoch 9/100
60000/60000 [==============================] - 2s 34us/step - loss: 0.1756 - val_loss: 0.1715
Epoch 10/100
60000/60000 [==============================] - 3s 46us/step - loss: 0.1704 - val_loss: 0.1667
Epoch 11/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1658 - val_loss: 0.1623
Epoch 12/100
60000/60000 [==============================] - 2s 35us/step - loss: 0.1616 - val_loss: 0.1582
Epoch 13/100
60000/60000 [==============================] - 2s 36us/step - loss: 0.1579 - val_loss: 0.1548
Epoch 14/100
60000/60000 [==============================] - 2s 32us/step - loss: 0.1544 - val_loss: 0.1514
Epoch 15/100
60000/60000 [==============================] - 2s 34us/step - loss: 0.1512 - val_loss: 0.1482
Epoch 16/100
60000/60000 [==============================] - 2s 32us/step - loss: 0.1482 - val_loss: 0.1453
Epoch 17/100
60000/60000 [==============================] - 2s 32us/step - loss: 0.1455 - val_loss: 0.1426
Epoch 18/100
60000/60000 [==============================] - 2s 32us/step - loss: 0.1429 - val_loss: 0.1401
Epoch 19/100
60000/60000 [==============================] - 2s 32us/step - loss: 0.1404 - val_loss: 0.1378
Epoch 20/100
60000/60000 [==============================] - 2s 34us/step - loss: 0.1381 - val_loss: 0.1355
Epoch 21/100
60000/60000 [==============================] - 2s 34us/step - loss: 0.1360 - val_loss: 0.1333
Epoch 22/100
60000/60000 [==============================] - 2s 32us/step - loss: 0.1339 - val_loss: 0.1313
Epoch 23/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1319 - val_loss: 0.1294
Epoch 24/100
60000/60000 [==============================] - 2s 32us/step - loss: 0.1300 - val_loss: 0.1275
Epoch 25/100
60000/60000 [==============================] - 2s 34us/step - loss: 0.1282 - val_loss: 0.1258
Epoch 26/100
60000/60000 [==============================] - 2s 34us/step - loss: 0.1265 - val_loss: 0.1241
Epoch 27/100
60000/60000 [==============================] - 3s 49us/step - loss: 0.1249 - val_loss: 0.1225
Epoch 28/100
60000/60000 [==============================] - 2s 35us/step - loss: 0.1234 - val_loss: 0.1211
Epoch 29/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1219 - val_loss: 0.1196
Epoch 30/100
60000/60000 [==============================] - 2s 34us/step - loss: 0.1206 - val_loss: 0.1183
Epoch 31/100
60000/60000 [==============================] - 2s 34us/step - loss: 0.1193 - val_loss: 0.1171
Epoch 32/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1182 - val_loss: 0.1160
Epoch 33/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1171 - val_loss: 0.1150
Epoch 34/100
60000/60000 [==============================] - 2s 31us/step - loss: 0.1161 - val_loss: 0.1141
Epoch 35/100
60000/60000 [==============================] - 2s 30us/step - loss: 0.1152 - val_loss: 0.1132
Epoch 36/100
60000/60000 [==============================] - 2s 31us/step - loss: 0.1144 - val_loss: 0.1123
Epoch 37/100
60000/60000 [==============================] - 2s 31us/step - loss: 0.1136 - val_loss: 0.1116
Epoch 38/100
60000/60000 [==============================] - 2s 31us/step - loss: 0.1129 - val_loss: 0.1109
Epoch 39/100
60000/60000 [==============================] - 2s 30us/step - loss: 0.1122 - val_loss: 0.1103
Epoch 40/100
60000/60000 [==============================] - 2s 30us/step - loss: 0.1116 - val_loss: 0.1097
Epoch 41/100
60000/60000 [==============================] - 2s 31us/step - loss: 0.1110 - val_loss: 0.1091
Epoch 42/100
60000/60000 [==============================] - 2s 31us/step - loss: 0.1105 - val_loss: 0.1086
Epoch 43/100
60000/60000 [==============================] - 3s 42us/step - loss: 0.1100 - val_loss: 0.1082
Epoch 44/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1096 - val_loss: 0.1077
Epoch 45/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1092 - val_loss: 0.1073
Epoch 46/100
60000/60000 [==============================] - 2s 41us/step - loss: 0.1088 - val_loss: 0.1069
Epoch 47/100
60000/60000 [==============================] - 3s 48us/step - loss: 0.1084 - val_loss: 0.1066
Epoch 48/100
60000/60000 [==============================] - 3s 57us/step - loss: 0.1080 - val_loss: 0.1062
Epoch 49/100
60000/60000 [==============================] - 3s 45us/step - loss: 0.1077 - val_loss: 0.1059
Epoch 50/100
60000/60000 [==============================] - 2s 41us/step - loss: 0.1074 - val_loss: 0.1056
Epoch 51/100
60000/60000 [==============================] - 2s 38us/step - loss: 0.1071 - val_loss: 0.1053
Epoch 52/100
60000/60000 [==============================] - 2s 41us/step - loss: 0.1068 - val_loss: 0.1050
Epoch 53/100
60000/60000 [==============================] - 2s 37us/step - loss: 0.1065 - val_loss: 0.1047
Epoch 54/100
60000/60000 [==============================] - 2s 36us/step - loss: 0.1063 - val_loss: 0.1045
Epoch 55/100
60000/60000 [==============================] - 2s 39us/step - loss: 0.1060 - val_loss: 0.1043
Epoch 56/100
60000/60000 [==============================] - 3s 46us/step - loss: 0.1058 - val_loss: 0.1041
Epoch 57/100
60000/60000 [==============================] - 3s 52us/step - loss: 0.1056 - val_loss: 0.1038
Epoch 58/100
60000/60000 [==============================] - 3s 48us/step - loss: 0.1054 - val_loss: 0.1036
Epoch 59/100
60000/60000 [==============================] - 3s 45us/step - loss: 0.1052 - val_loss: 0.1034
Epoch 60/100
60000/60000 [==============================] - 3s 53us/step - loss: 0.1050 - val_loss: 0.1032
Epoch 61/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1048 - val_loss: 0.1030
Epoch 62/100
60000/60000 [==============================] - 3s 42us/step - loss: 0.1046 - val_loss: 0.1028
Epoch 63/100
60000/60000 [==============================] - 2s 35us/step - loss: 0.1044 - val_loss: 0.1027
Epoch 64/100
60000/60000 [==============================] - 2s 41us/step - loss: 0.1042 - val_loss: 0.1025
Epoch 65/100
60000/60000 [==============================] - 2s 35us/step - loss: 0.1041 - val_loss: 0.1024
Epoch 66/100
60000/60000 [==============================] - 2s 38us/step - loss: 0.1039 - val_loss: 0.1022
Epoch 67/100
60000/60000 [==============================] - 2s 36us/step - loss: 0.1038 - val_loss: 0.1020
Epoch 68/100
60000/60000 [==============================] - 2s 35us/step - loss: 0.1036 - val_loss: 0.1019
Epoch 69/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1035 - val_loss: 0.1018
Epoch 70/100
60000/60000 [==============================] - 2s 34us/step - loss: 0.1033 - val_loss: 0.1017
Epoch 71/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1032 - val_loss: 0.1015
Epoch 72/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1031 - val_loss: 0.1014
Epoch 73/100
60000/60000 [==============================] - 2s 35us/step - loss: 0.1030 - val_loss: 0.1013
Epoch 74/100
60000/60000 [==============================] - 3s 55us/step - loss: 0.1028 - val_loss: 0.1012
Epoch 75/100
60000/60000 [==============================] - 2s 35us/step - loss: 0.1027 - val_loss: 0.1010
Epoch 76/100
60000/60000 [==============================] - 3s 45us/step - loss: 0.1026 - val_loss: 0.1009
Epoch 77/100
60000/60000 [==============================] - 2s 36us/step - loss: 0.1025 - val_loss: 0.1008
Epoch 78/100
60000/60000 [==============================] - 2s 38us/step - loss: 0.1023 - val_loss: 0.1007
Epoch 79/100
60000/60000 [==============================] - 2s 37us/step - loss: 0.1022 - val_loss: 0.1006
Epoch 80/100
60000/60000 [==============================] - 3s 49us/step - loss: 0.1021 - val_loss: 0.1004
Epoch 81/100
60000/60000 [==============================] - 2s 40us/step - loss: 0.1020 - val_loss: 0.1003
Epoch 82/100
60000/60000 [==============================] - 3s 52us/step - loss: 0.1019 - val_loss: 0.1002
Epoch 83/100
60000/60000 [==============================] - 3s 49us/step - loss: 0.1017 - val_loss: 0.1001
Epoch 84/100
60000/60000 [==============================] - 2s 32us/step - loss: 0.1016 - val_loss: 0.1000
Epoch 85/100
60000/60000 [==============================] - 3s 48us/step - loss: 0.1015 - val_loss: 0.0999
Epoch 86/100
60000/60000 [==============================] - 2s 35us/step - loss: 0.1014 - val_loss: 0.0998
Epoch 87/100
60000/60000 [==============================] - 2s 36us/step - loss: 0.1013 - val_loss: 0.0996
Epoch 88/100
60000/60000 [==============================] - 2s 41us/step - loss: 0.1012 - val_loss: 0.0995
Epoch 89/100
60000/60000 [==============================] - 2s 37us/step - loss: 0.1010 - val_loss: 0.0994
Epoch 90/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1009 - val_loss: 0.0993
Epoch 91/100
60000/60000 [==============================] - 2s 37us/step - loss: 0.1008 - val_loss: 0.0992
Epoch 92/100
60000/60000 [==============================] - 2s 39us/step - loss: 0.1007 - val_loss: 0.0991
Epoch 93/100
60000/60000 [==============================] - 2s 37us/step - loss: 0.1006 - val_loss: 0.0990
Epoch 94/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1005 - val_loss: 0.0989
Epoch 95/100
60000/60000 [==============================] - 2s 35us/step - loss: 0.1004 - val_loss: 0.0988
Epoch 96/100
60000/60000 [==============================] - 2s 35us/step - loss: 0.1003 - val_loss: 0.0986
Epoch 97/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.1002 - val_loss: 0.0985
Epoch 98/100
60000/60000 [==============================] - 2s 32us/step - loss: 0.1000 - val_loss: 0.0984
Epoch 99/100
60000/60000 [==============================] - 2s 32us/step - loss: 0.0999 - val_loss: 0.0984
Epoch 100/100
60000/60000 [==============================] - 2s 33us/step - loss: 0.0998 - val_loss: 0.0982
<keras.callbacks.History at 0x134fde208>
print(autoencoder.summary())
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_3 (InputLayer) (None, 784) 0
_________________________________________________________________
dense_3 (Dense) (None, 32) 25120
_________________________________________________________________
dense_4 (Dense) (None, 784) 25872
=================================================================
Total params: 50,992
Trainable params: 50,992
Non-trainable params: 0
_________________________________________________________________
None
encoded_imgs = encoded.predict(x_test)
decoded_imgs = decoder.predict(encoded_imgs)

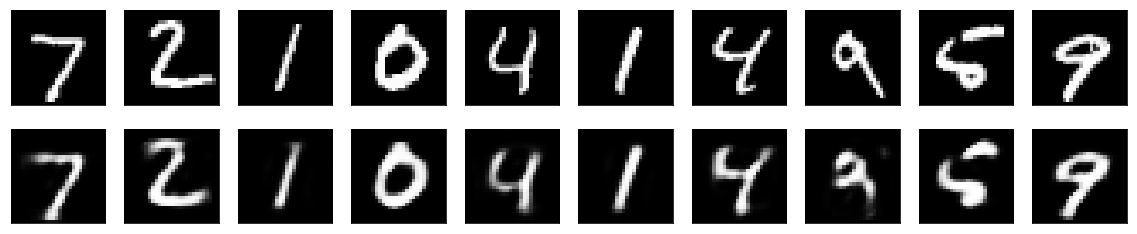

Lets plot with matplotlib
n =10
plt.figure(figsize=(20, 4))
for i in range(n):
# original image
ax = plt.subplot(2, n, i + 1)
plt.imshow(x_test[i].reshape(28,28))
plt.gray()
ax.get_xaxis().set_visible(False)
ax.get_yaxis().set_visible(False)
# Reconstructed image
ax = plt.subplot(2, n, i + 1 + n)
plt.imshow(decoded_imgs[i].reshape(28,28))
plt.gray()
ax.get_xaxis().set_visible(False)
ax.get_yaxis().set_visible(False)
plt.show()
Leave a comment
